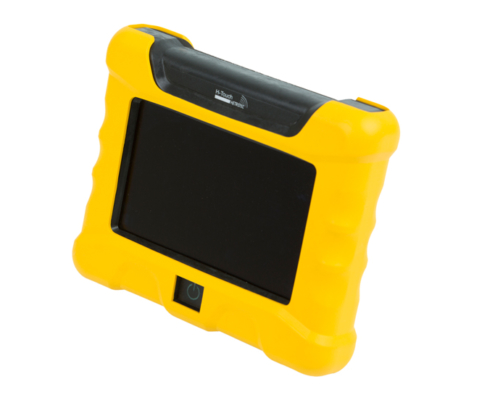

H-TOUCH

The H-TOUCH Mobile Equipment monitoring device provides operators with the ability to monitor auxiliary equipment or gather analytical data on vehicle operational status with the touch of a finger on the fast response 8″ TFT Color LED back-lit, sunlight readable touch screen. With a highly configurable Graphical User Interface (GUI), it can be customized to meet the customer operational needs and improve job safety, performance and efficiency. Possible connections include USB, HDMI, Bluetooth, Wi-Fi and SDIO card, while optional video feedback capability is available by integrating cameras onto the vehicle that provides additional safety in the work area. Standard operating frequency is 2.4Ghz with other possible operating frequencies also available. The H-TOUCH is designed to be hard wired into virtually any vehicle or mobile equipment.

  • Weight

    1800gr (4.0 lbs)

    Typical – Depending on configuration

  • Dimensions

    H: 190mm (7.5″)

    W: 228mm (9.0″)

    D: 64mm (2.5″)

  • Frequencies

    2.4GHz

    Other frequencies optional

  • IP Rating

  • Operating Temperature Range

    -20oC to +70o C

    (-4o F to +158o F)

  • Not Applicable
