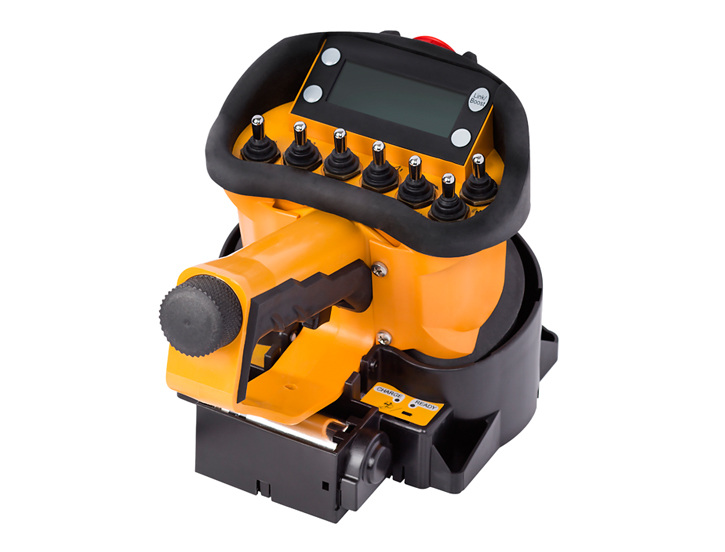

HH TC-1

The Hand Held TC-1 series is bringing the ergonomics of pistol grip transmitters to a new level with functional safety to meet the highest standards. The HH TC-1 is equipped with up to seven (7) three position toggle switches, four (4) push buttons, an optional 120×32 pixel LCD display, a proportional (gray code) trigger switch capable of operating in rugged environments and an easy to access STOP switch. The TC-1 is powered with one (1) Hetronic 3.2V Li-Ion rechargeable battery.

  • Weight

    Up to 960gr (2.1 lbs)

    Full configuration – Batteries included

  • Dimensions

    H: 225mm (8.9″)

    W: 152mm (6.0″)

    D: 126mm (5.0″)

  • Frequencies

    2.4GHz

  • IP Rating

  • Operating Temperature Range

    -20oC to +70o C

    (-4o F to +158o F)

  • Not Applicable
